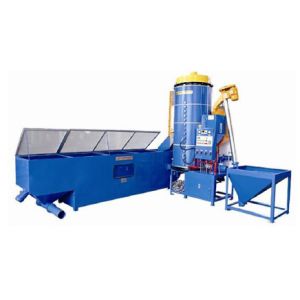

Expandable Polystyrene Foam Making Machine EPS Continuous Pre Expander
Descriptions :
EPS continuous pre-expander machine is a kind of equipment which continuously sends EPS raw materials into the pre-expander machine and continuously sends the beads to a certain density from the pre-expander.
The EPS raw material can be expanded by first time expansion and second time expansion. The steam and Chamber’s temperature can be controlled by adjusting the steam valve to reach the control requirements of pre-expand density of EPS beads. Overall structure of the machine is steel frame structure. The operation buttons and valve buttons are integrated in one operation box and fixed on the machine for easy operation. The inner cylinder, outer cylinder and key parts of the machine are made from stainless steel, avoiding the pollution of beads caused by corrosion. Ensure the high quality of products. This machine has high performance in saving energy, improving work efficiency and ensuring product quality. First and second feeding quantity is controlled by its own feeding valve. The feeding device has the advantages of stable operation, low noise, drive output torque big and other advantages and is also convenient for use and maintenance. In the temperature control, pressure and temperature double indication, so the adjustment range is large, the control is fine, accurate, meet the production requirements.
| Main Technical Parameters | |||
| Name | EPS Continuous Pre-expander Machine | ||
| Model | FW-LX960 | FW-LX1200 | |
| Chamber size | Diameter | Φ960 mm | Φ1200 mm |
| Height | 1800 mm | 2100 mm | |
| Effective volume | 1.00 m3 | 2.00 m3 | |
| Expansion Rate | Second time expansion rate | 6-8 kg/m3 | 6-8 kg/m3 |
| First back | -- | -- | |
| First time expansion rate | 12-25 kg/m3 | 12-25 kg/m3 | |
| Density tolerance | ≦ ± 5% | ≦ ± 5% | |
| Cycle time | -- | -- | |
| Steam | Entry | DN25 | DN25 |
| Pressure | 0.4-0.6 Mpa | 0.4-0.6 Mpa | |
| Consumption | 110-160 kg/cycle | 130-190 kg/cycle | |
| Compressed Air | Entry | DN20 | DN20 |
| Pressure | 0.4-0.6 Mpa | 0.4-0.6Mpa | |
| Consumption | -- | -- | |
| Exhaust | Upper | -- | -- |
| Lower | DN20 | DN20 | |
| Throughput | 6 g/L (Kg/h) | ≧ 250 | ≧ 500 |
| 8 g/L (Kg/h) | ≧ 300 | ≧ 600 | |
| 12 g/L (Kg/h) | ≧ 120 | ≧ 180 | |
| 15 g/L (Kg/h) | ≧ 150 | ≧ 220 | |
| 20 g/L (Kg/h) | ≧ 220 | ≧ 330 | |
| Material conveying port | 200 mm | 200 mm | |
| Installed power | Spindle motor | 2.2 kw | 4 kw |
| Feeding fan | 1.5 kw | 1.5 kw | |
| Drying fan | 3 kw | 4 kw | |
| Material conveying fan | 4 kw | 7.5 kw | |
| Feeding and mixing motor | 0.75 kw | 0.75 kw | |
| Crushing motor | 0.55 kw | 0.55 kw | |
First time feeding | 0.55 kw | 0.55 kw | |
Second time feeding | 0.75 kw | 3 kw | |
Second time sucking | 2.2 kw | 2.2 kw | |
| Total installed power | 15.5 | 23.5 | |
| Overall dimension | L | 5600 mm | 6000 mm |
| W | 2800 mm | 3010 mm | |
| H | 3200 mm | 3500 mm | |
| Machine weight | 1700 kg | 2000 kg | |
